What files do you need to evaluate a PCBA project?

Send Gerber files (RS-274X or ODB++), a BOM with manufacturer part numbers, the pick-and-place (centroid) file and an assembly drawing. If you need functional testing, add the test specification, firmware and any test fixture requirements so FCT can be planned before production.

Do you support low-volume prototypes as well as mass production?

Yes. The same SMT lines handle engineering prototypes, pilot runs and volume production. Small batches carry a higher unit cost because stencil, line setup and component reel minimums are spread across fewer boards; our engineers advise on panelization and alternate parts to reduce that cost.

How do you control PCBA quality?

Quality is controlled in a closed loop: incoming material inspection, 3D SPI after solder paste printing, AOI after reflow, X-ray inspection for BGA and hidden joints, and functional testing before packing. Workmanship follows IPC-A-610 Class 2 by default, with Class 3 available on request, and the process targets a first-pass yield of 98.5% or higher.

Can you source the electronic components for us?

Yes. We offer full turnkey service where we procure all components through long-term supply partners, partial turnkey where you consign critical parts, and consignment assembly where you supply all materials.

Can overseas buyers audit the factory before ordering?

Yes. Buyers can schedule an on-site audit at our Shenzhen facility or a live video audit covering material storage, SMT lines, inspection stations and traceability records.

ODM One-stop PCBA Manufacturing & PCB Assembly Manufacturers, Suppliers

1 / 4

ODM One-stop PCBA Manufacturing & PCB Assembly Manufacturers, Suppliers

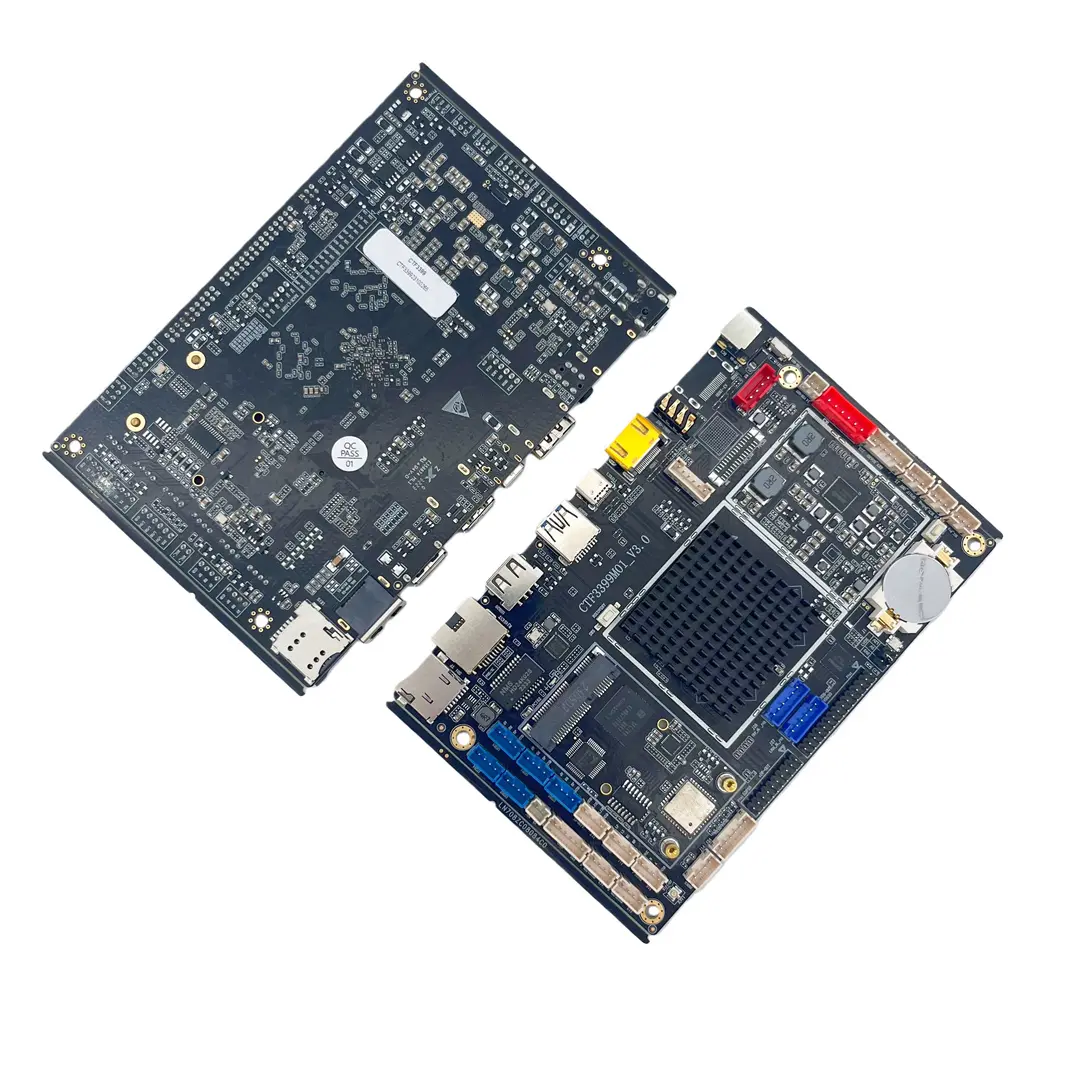

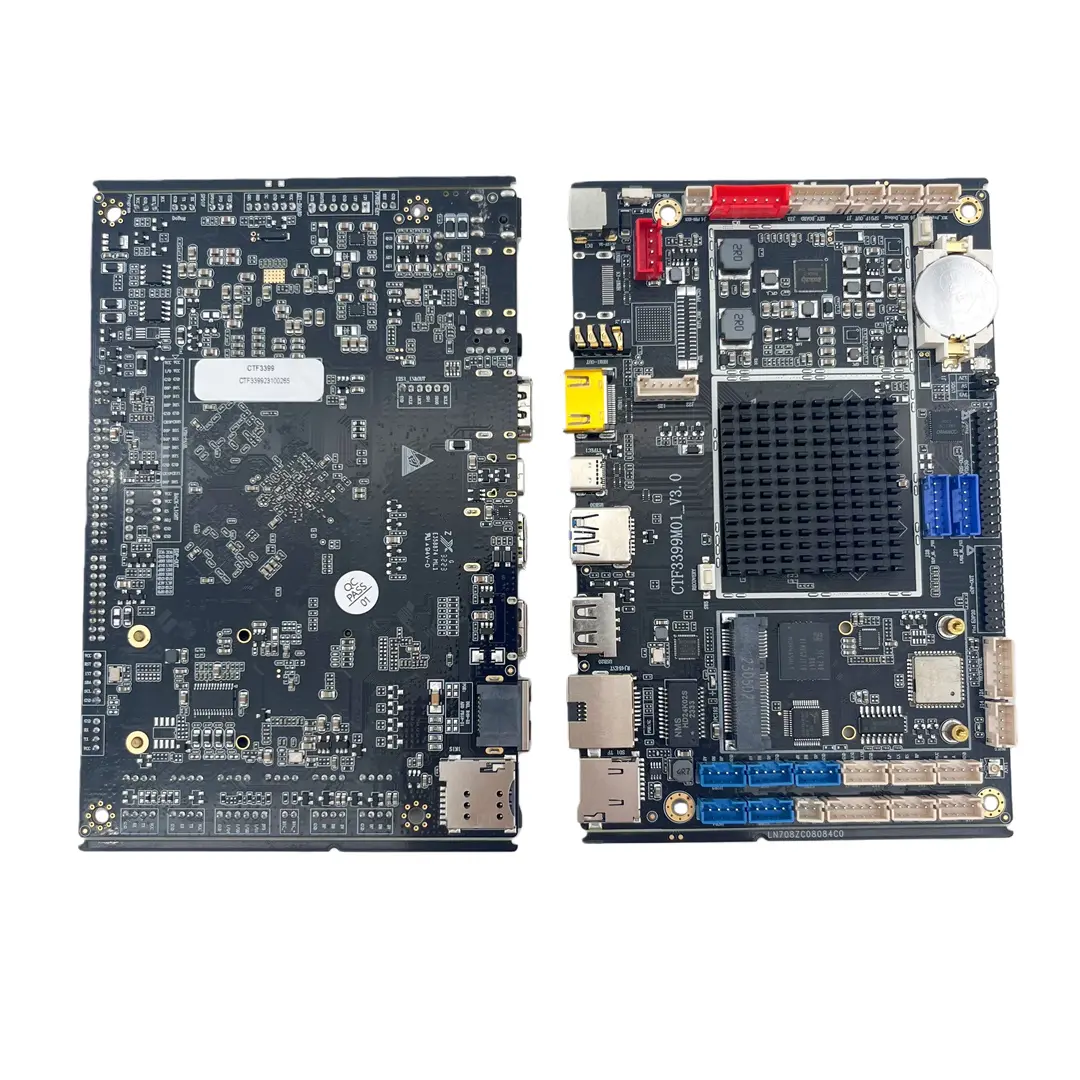

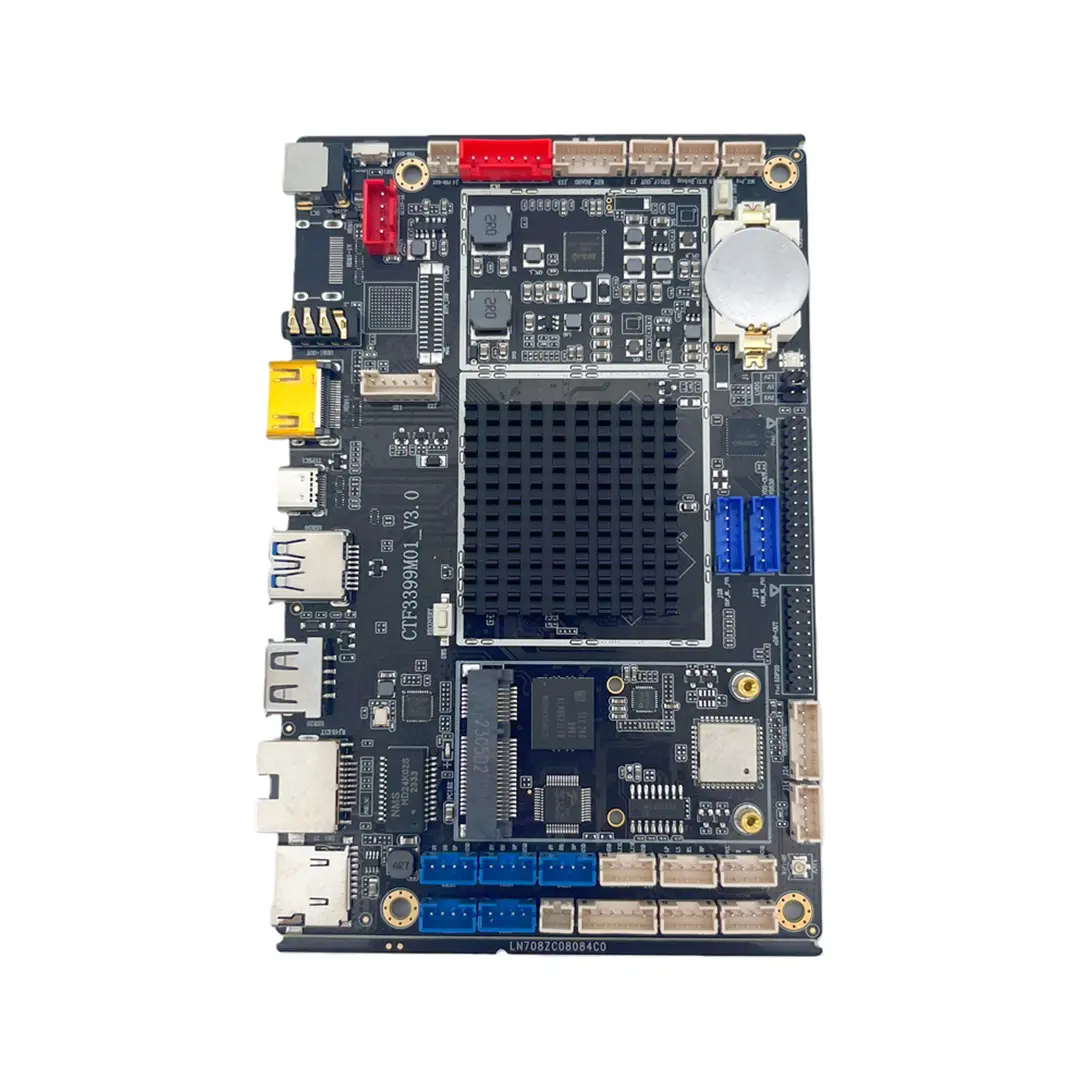

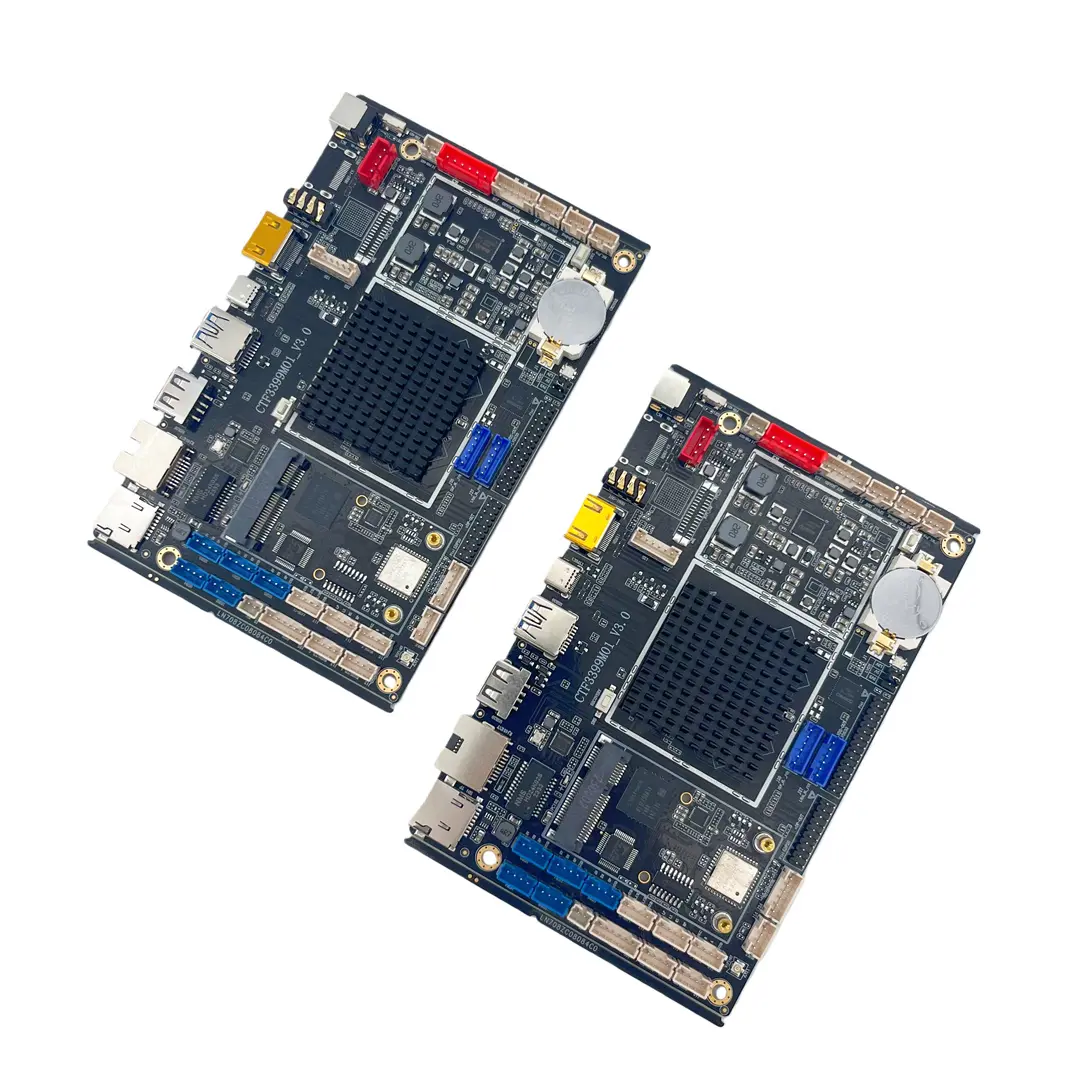

RK Android control PCBA board, double-sided mounting, SMD+DIP electronic components, with over 1000 mounting points. Contains multiple BGA, QFN, QFP, and SOP packaged chips. 8-layer PCB board with a thickness of 1.6mm and surface gold plating process.

Send Inquiry

Product Description

Frequently Asked Questions

What engineering files are required for an accurate PCBA quote?

To provide an exact quotation and DFM check, we typically require Gerber files (RS-274X format), a detailed Bill of Materials (BOM) with manufacturer part numbers, pick-and-place (Centroid) data, and any specific testing instructions.

Do you provide turnkey PCBA or consigned component assembly?

We offer both full turnkey solutions (handling PCB fabrication, electronic component sourcing, and assembly) and consigned/kitted assembly where customers supply some or all components directly.

What quality control and inspection methods do you perform?

All PCBA boards undergo stringent quality inspections including Automated Optical Inspection (AOI), X-ray inspection for BGA/QFN packages, In-Circuit Testing (ICT), and functional testing (FCT) according to project specifications.

Can you support rapid prototyping as well as volume production?

Yes, our flexible SMT production lines are configured to handle quick-turn prototyping, low-to-medium pilot runs, and large-scale batch manufacturing with consistent reliability and efficiency.

How do you handle IP protection and file confidentiality?

We prioritize intellectual property safety. Non-Disclosure Agreements (NDAs) can be executed before receiving design files, and all schematics, BOMs, and manufacturing documentation are stored on secure, encrypted servers.
