What files do you need to evaluate a PCBA project?

Send Gerber files (RS-274X or ODB++), a BOM with manufacturer part numbers, the pick-and-place (centroid) file and an assembly drawing. If you need functional testing, add the test specification, firmware and any test fixture requirements so FCT can be planned before production.

Do you support low-volume prototypes as well as mass production?

Yes. The same SMT lines handle engineering prototypes, pilot runs and volume production. Small batches carry a higher unit cost because stencil, line setup and component reel minimums are spread across fewer boards; our engineers advise on panelization and alternate parts to reduce that cost.

How do you control PCBA quality?

Quality is controlled in a closed loop: incoming material inspection, 3D SPI after solder paste printing, AOI after reflow, X-ray inspection for BGA and hidden joints, and functional testing before packing. Workmanship follows IPC-A-610 Class 2 by default, with Class 3 available on request, and the process targets a first-pass yield of 98.5% or higher.

Can you source the electronic components for us?

Yes. We offer full turnkey service where we procure all components through long-term supply partners, partial turnkey where you consign critical parts, and consignment assembly where you supply all materials.

Can overseas buyers audit the factory before ordering?

Yes. Buyers can schedule an on-site audit at our Shenzhen facility or a live video audit covering material storage, SMT lines, inspection stations and traceability records.

High-Quality OEM ODM PCBA for All Electronic Products Service, Factory

1 / 3

High-Quality OEM ODM PCBA for All Electronic Products Service, Factory

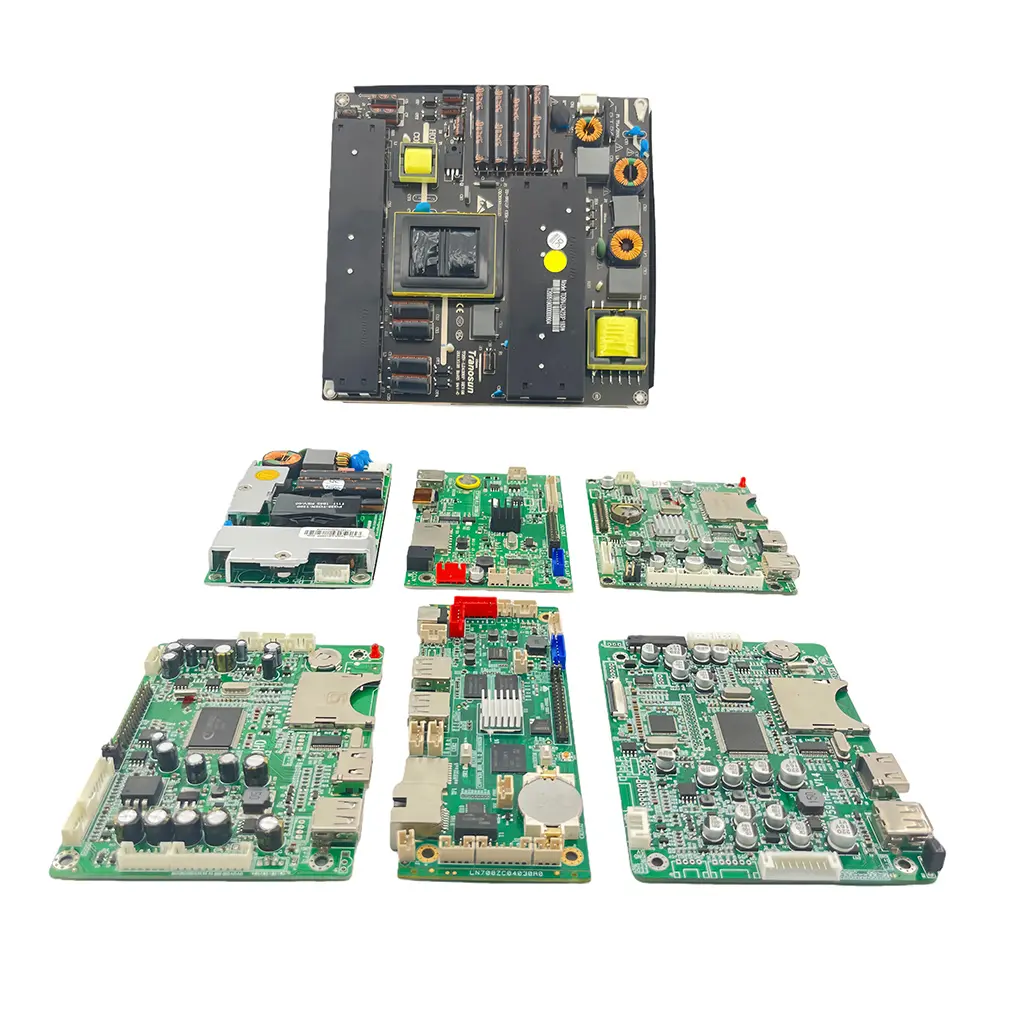

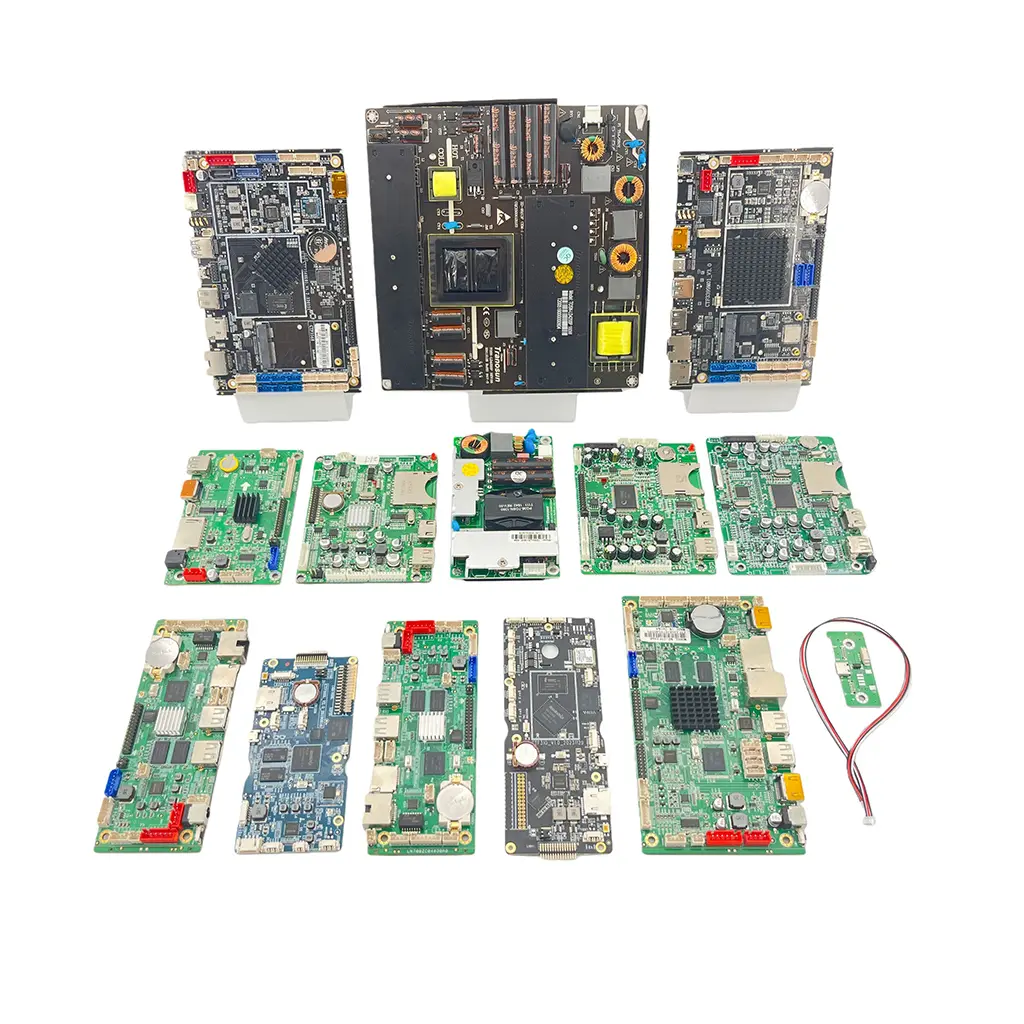

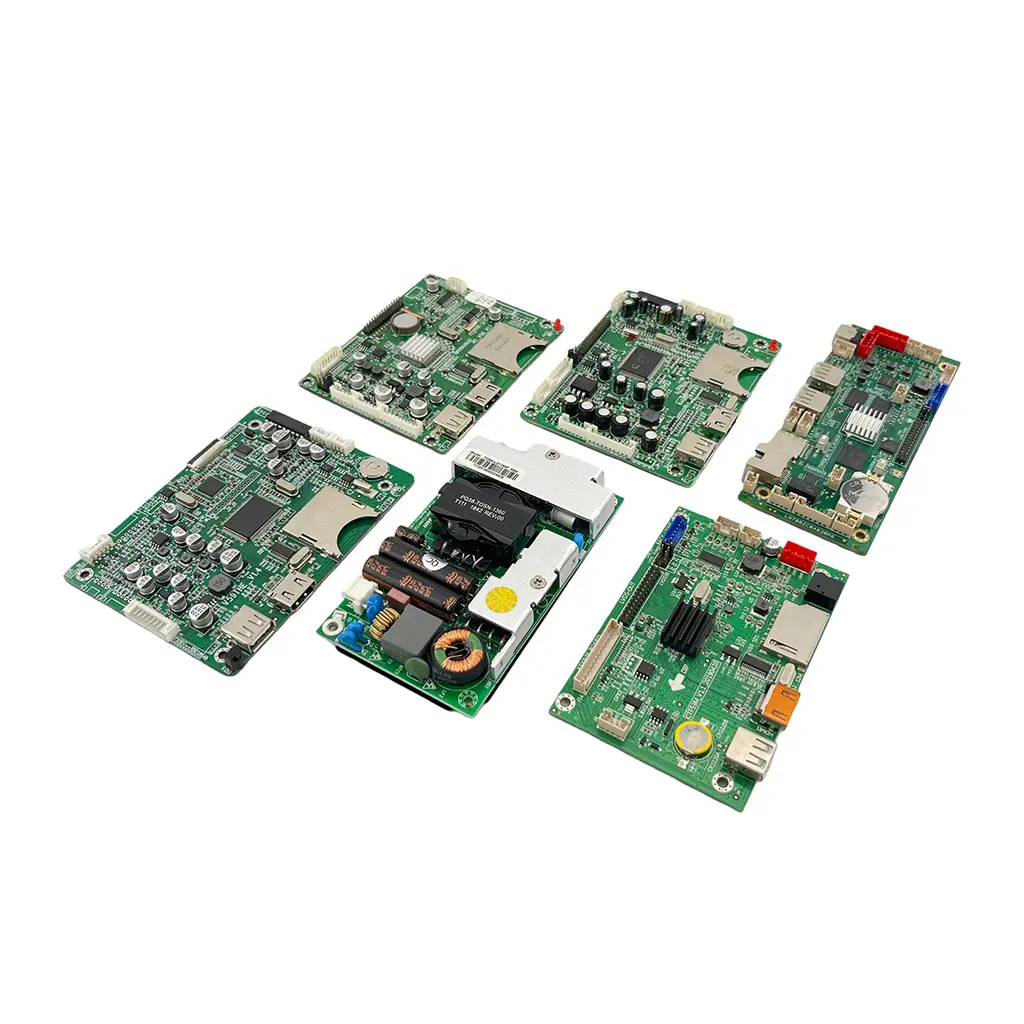

These are some PCBA control boards for electronic products or instrument equipment that we have produced,SMD+DIP mounting, with over 100~1000 mounting points. Contains multiple BGA,QFN,QFP, and SOP packaged chips. 1 layer-8 layer PCB board with a thickness of 0.4mm~2.0mm and surface HASL lead free process.

Send Inquiry

Product Description

Frequently Asked Questions

Q: What files are required for a PCBA production quote?

To provide an accurate and prompt quote, we require the Gerber files (RS-274X format), a comprehensive Bill of Materials (BOM) including manufacturer part numbers, pick-and-place (Centroid/XY) data, and any specific assembly or testing instructions.

Q: What is the difference between SMT and DIP assembly processes?

Surface Mount Technology (SMT) mounts electronic components directly onto the PCB surface, ideal for miniaturization and high-speed automated production. Dual In-line Package (DIP) or through-hole technology inserts component leads into drilled holes, providing superior mechanical strength for power circuits and heavy connectors.

Q: Can you handle low-volume prototyping as well as mass production?

Yes, our facilities support end-to-end manufacturing demands ranging from quick-turn prototype PCBA runs (as low as 1 to 5 pieces) to full turnkey high-volume batch production with dedicated lines.

Q: What inspection and quality control methods do you implement?

Every PCBA undergoes rigorous quality checkpoints including Automated Optical Inspection (AOI), X-ray inspection for BGA/QFN components, In-Circuit Testing (ICT), functional testing (FCT), and visual microscopic inspections compliant with IPC-A-610 standards.

Q: Do you offer turnkey component procurement services?

Yes, we provide full turnkey component sourcing through authorized and globally certified distributors, guaranteeing 100% original components. We also accommodate consigned or partially consigned component setups.
