What files do you need to evaluate a PCBA project?

Send Gerber files (RS-274X or ODB++), a BOM with manufacturer part numbers, the pick-and-place (centroid) file and an assembly drawing. If you need functional testing, add the test specification, firmware and any test fixture requirements so FCT can be planned before production.

Do you support low-volume prototypes as well as mass production?

Yes. The same SMT lines handle engineering prototypes, pilot runs and volume production. Small batches carry a higher unit cost because stencil, line setup and component reel minimums are spread across fewer boards; our engineers advise on panelization and alternate parts to reduce that cost.

How do you control PCBA quality?

Quality is controlled in a closed loop: incoming material inspection, 3D SPI after solder paste printing, AOI after reflow, X-ray inspection for BGA and hidden joints, and functional testing before packing. Workmanship follows IPC-A-610 Class 2 by default, with Class 3 available on request, and the process targets a first-pass yield of 98.5% or higher.

Can you source the electronic components for us?

Yes. We offer full turnkey service where we procure all components through long-term supply partners, partial turnkey where you consign critical parts, and consignment assembly where you supply all materials.

Can overseas buyers audit the factory before ordering?

Yes. Buyers can schedule an on-site audit at our Shenzhen facility or a live video audit covering material storage, SMT lines, inspection stations and traceability records.

China Stackup Recommendation Suppliers & Factories

// PRODUCTION MATRIX

Precision PCBA & Substrate Assembly Catalog

Validated across 8 high-speed SMT lines with automated 3D SPI, AXI X-ray, and impedance-matched precision fabrication.

High-Quality Industrial Control PCBA Assembly & Processing Service Supplier, Suppliers

View Stackup Details

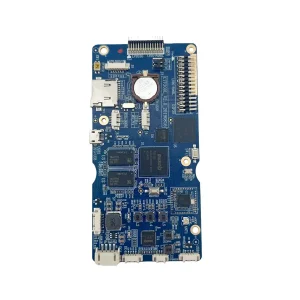

China Custom PCBA Production from Gerber & BOM Files Service, Factories

View Stackup Details

ODM One-stop PCBA Manufacturing & PCB Assembly Manufacturers, Suppliers

View Stackup Details

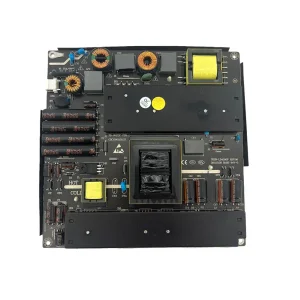

Best SMT Factory Power PCBA Production with DIP Supplier, Suppliers

View Stackup Details

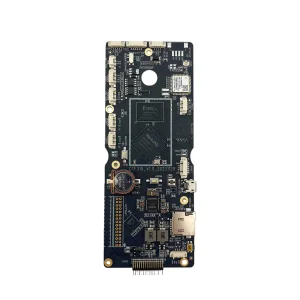

Custom Shenzhen SMT PCBA for Smart Product Manufacturing Service, Factory

View Stackup Details

// GLOBAL PROCUREMENT ARCHITECTURE

Why Stackup Recommendation Governs Modern Electronics Procurement

In high-speed digital and RF architectures, PCB substrate layer assignment is no longer an isolated drafting decision—it is the physical foundation for signal propagation, thermal management, and yield viability.

Global Signal Integrity Dynamics

With edge rates falling below 200 picoseconds in PCIe Gen 5/6, USB4, and 5G cellular architectures, unverified stackup geometries trigger transmission line reflections and severe attenuation. Procurement teams rely on Chinese manufacturing partners for 2D field solver modeling that aligns trace widths with dielectric constants (Dk/Df).

Cost Engineering & Standard Prepregs

Over-specifying core thicknesses or specifying uncommon glass weaves (such as non-standard 106 or 2116 plies) inflates raw material lead times by up to 6 weeks. Factory-level stackup recommendations substitute non-standard laminates with standard inventory while preserving dielectric height tolerances.

Thermomechanical Symmetry

Unbalanced copper distribution across high-density multilayer designs leads to catastrophic board warping and delamination during convection reflow soldering. Verified symmetry recommendations ensure bow and twist metrics stay well within IPC-6012 standards (<0.75%).

8 Lines

High-Speed SMT Placement

1.2M+

Daily Placement Points

±7%

Controlled Impedance Tolerance

98.5%

SMT First-Pass Yield (FPY)

// ENGINEERING EXCELLENCE

Technical Benchmark: Standard Multilayer Stackup Paradigms

Aozite Technology implements deterministic prepreg glass styles, copper foil profiles (VLP/HVLP), and reference return-path pairings across multilayer configurations.

Layer Count	Stackup Architecture Configuration	Dielectric Core/PP Material	Nominal Board Thickness	Target Controlled Impedance	Primary Industrial Sector
4-Layer	SIG - GND - PWR - SIG (Asymmetric/Coplanar)	FR-4 High Tg (Tg ≥ 170°C) 7628 / 2116	1.6mm ± 10%	50Ω Single / 90Ω USB Diff	Smart Home, Consumer Electronics
6-Layer	SIG - GND - SIG - PWR - GND - SIG	Shengyi S1000-2M / IT-180A	1.6mm ± 0.13mm	50Ω Single / 100Ω Diff	IoT Control Gateways, Wearables
8-Layer	SIG - GND - SIG - PWR - GND - SIG - GND - SIG	FR-4 High Speed / 1080 + 3313 Glass	1.6mm ± 0.10mm	50Ω / 85Ω PCIe / 90Ω Diff	Industrial PLCs, Automation Drives
10-12 Layer	GND - SIG - GND - SIG - PWR - PWR - SIG - GND - SIG - GND	Panasonic Megtron 6 / Rogers Hybrid	1.6mm - 2.0mm ± 8%	40Ω / 50Ω / 85Ω / 100Ω	Automotive Telematics, Medical IVD
HDI (1+N+1 / 2+N+2)	Laser Microvia Stacked/Staggered Substrates	Low Df/Dk Halogen-Free Laserable PP	0.8mm - 1.2mm ± 7%	50Ω RF Microstrip ± 5%	TWS Audio Modules, Mini Medical Probes

// VERTICAL INDUSTRY APPLICATIONS

Mission-Critical Industry Solutions Driven by Advanced Stackups

A failed dielectric or poorly grounded reference plane leads to catastrophic hardware recall. We calibrate board geometry against harsh deployment parameters.

Automotive & New Energy Systems

Demanding ISO 26262 ASIL functional safety environments mandate stackups that resist conductive anodic filament (CAF) degradation. Our stackup recommendations integrate high-CTI laminates, reinforced resin boundaries, and thick copper planes for Battery Management Systems (BMS) and body controllers.

Medical Diagnostics & IVD Instruments

For high-sensitivity patient monitors and in-vitro diagnostics, stackup design must avoid analog noise floor corruption. We configure dedicated solid split-ground partitions and balanced power distribution planes (PDN) to yield ultra-clean physiological signals.

Heavy Industrial Control & Inverters

Continuous thermal exposure inside programmable logic controllers (PLCs) and variable-frequency drives requires heavy copper (2oz to 4oz) inner-layer stackups. Our Shenzhen manufacturing line applies custom resin-filling and press recipes to eliminate voids around high-current traces.

// COMPLIANCE & QUALITY CLOSURE

Shenzhen Manufacturing Traceability & Regulatory Conformance

Operating from Shenzhen's premier electronics manufacturing corridor, Shenzhen Aozite Technology guarantees complete supply chain accountability from bare substrate lamination to finished box-build.

IPC-A-610 Class 2 & Class 3 Rigor

Assembly workmanship strictly complies with IPC-A-610 guidelines. Every SMT production run undergoes 100% 3D Solder Paste Inspection (SPI), high-resolution automated optical inspection (AOI), and continuous batch-level automated X-ray inspection (AXI) for bottom-terminated components (BTC) and BGAs.

TDR Controlled Impedance Verification

Every fabricated fabrication coupon undergoes Time Domain Reflectometry (TDR) measurement to confirm trace impedance targets (±7% standard, ±5% on demand). Physical test coupons are stamped, serialized, and archived alongside raw panel inspection certificates.

RoHS, REACH & UL 94V-0 Certification

Raw copper-clad laminates (CCL) and chemical finishing chemistries (ENIG, Immersion Silver, OSP, ENEPIG) are 100% RoHS and REACH compliant. Flame-retardant performance is backed by UL 94V-0 listings with traceable manufacturer lot records for overseas safety audits.

// TURNKEY SYSTEM DEPLOYMENTS

Ready-to-Manufacture Assemblies & Field Implementations

Integrate our validated layer topologies directly into your upcoming production schedule. Sourced, assembled, and tested by Aozite.

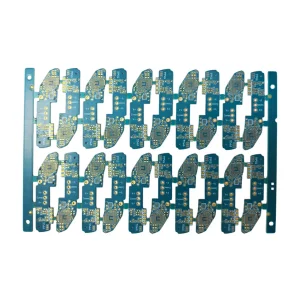

ODM Earphone Panel PCBA OEM ODM Service Supplier, Factory

View Stackup Details

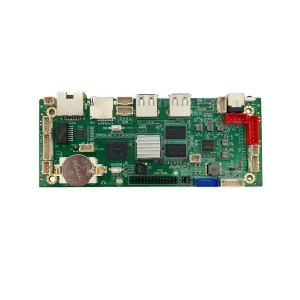

Custom High-quality PCBA Assembly for IoT Control Boards Supplier, Factory

View Stackup Details

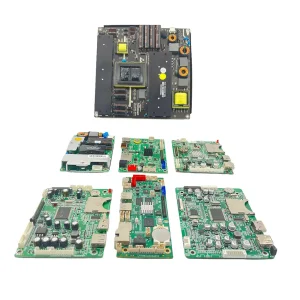

High-Quality OEM ODM PCBA for All Electronic Products Service, Factory

View Stackup Details

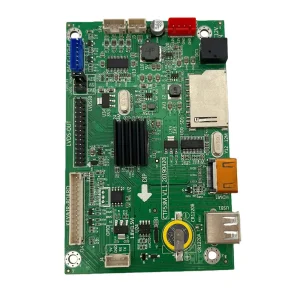

OEM Professional SMT PCBA Production for Electronics Manufacturers, Supplier

View Stackup Details

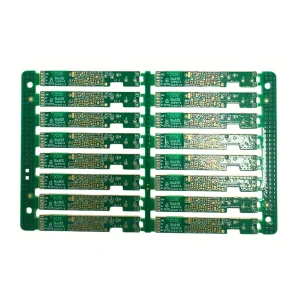

OEM Smart Bracelet PCBA OEM Manufacturing Factories, Factory

View Stackup Details

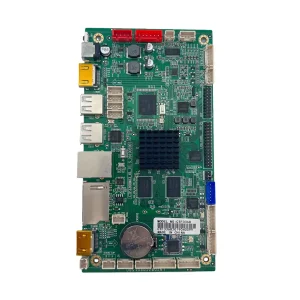

High-Quality Industrial Control PCBA Assembly & Processing Service Supplier, Suppliers

View Stackup Details

China Custom PCBA Production from Gerber & BOM Files Service, Factories

View Stackup Details

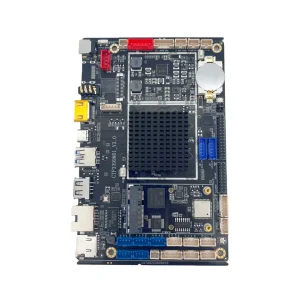

ODM One-stop PCBA Manufacturing & PCB Assembly Manufacturers, Suppliers

View Stackup Details

// FREQUENTLY ASKED QUESTIONS

Stackup Recommendation & Sourcing FAQ

Clear, technical clarity for overseas procurement officers, hardware directors, and component sourcing managers.

Why must stackup recommendation happen prior to routing completion?

Final trace width and spacing are functions of the exact dielectric thickness (H) and relative permittivity (Er) of the lamination prepregs selected by the factory. If routing finishes prior to stackup confirmation, any adjustment to material glass styles (such as changing from 2116 to 7628 to optimize resin flow) will alter trace impedance by 5 to 15 ohms, forcing time-consuming redesigns and post-layout DRC failures.

How does Aozite Technology handle copper balance to prevent board bow and twist?

Our DFM review evaluates the copper density percentage of each layer in CAD/CAM files. We recommend copper balance thieving on outer layers and enforce symmetrical dielectric distribution around the center core. This guarantees that thermal expansion coefficients (αCTE) remain balanced across the Z-axis, keeping board warpage below 0.5% (exceeding IPC-6012's 0.75% threshold) during lead-free convection reflow.

What specific files are required for an audit-grade stackup evaluation?

To generate a production-ready stackup proposal, we require: (1) Target finished board thickness (e.g., 1.6mm ± 10%), (2) Layer count and signal-to-ground hierarchy, (3) Critical impedance net lists with desired values (e.g., 50Ω single-ended, 90Ω USB, 100Ω Ethernet), (4) Outer and inner copper weight requirements (e.g., 1oz base outer, 0.5oz inner), and (5) Operating environment envelope (Tg rating, CTI, and high-frequency Df limits).

Can Aozite accommodate hybrid high-frequency stackups (e.g., Rogers + FR-4)?

Yes. We routinely fabricate cost-optimized hybrid multilayer configurations where high-frequency PTFE/ceramic laminates (such as Rogers RO4350B or RO4003C) are laminated only onto top layers for RF microstrip pathways, while low-cost high-Tg FR-4 serves as the internal structural and digital routing core. Our engineering team calculates specific bonding ply rheology to prevent delamination during thermal cycling.

How do you verify controlled impedance parameters on production shipments?

Each production working panel contains dedicated IPC-2141 impedance test coupons on the waste border. Coupons replicate the exact trace geometries and dielectric environments of your live PCB. We perform automated Time Domain Reflectometry (TDR) testing at outgoing QC, recording real-time waveforms. A validated TDR test report and micro-section analysis certificate accompany every exported production batch.
